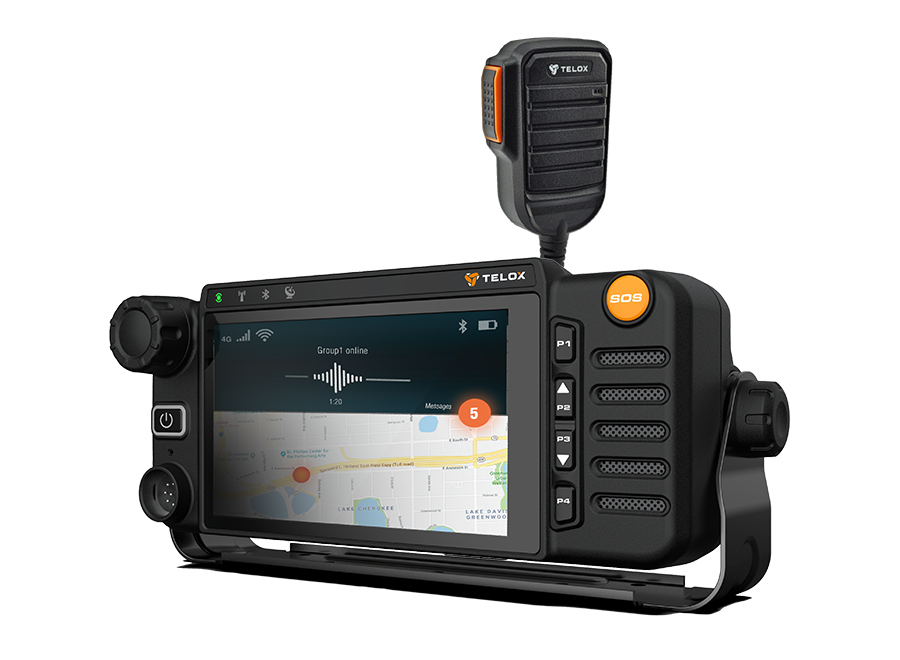

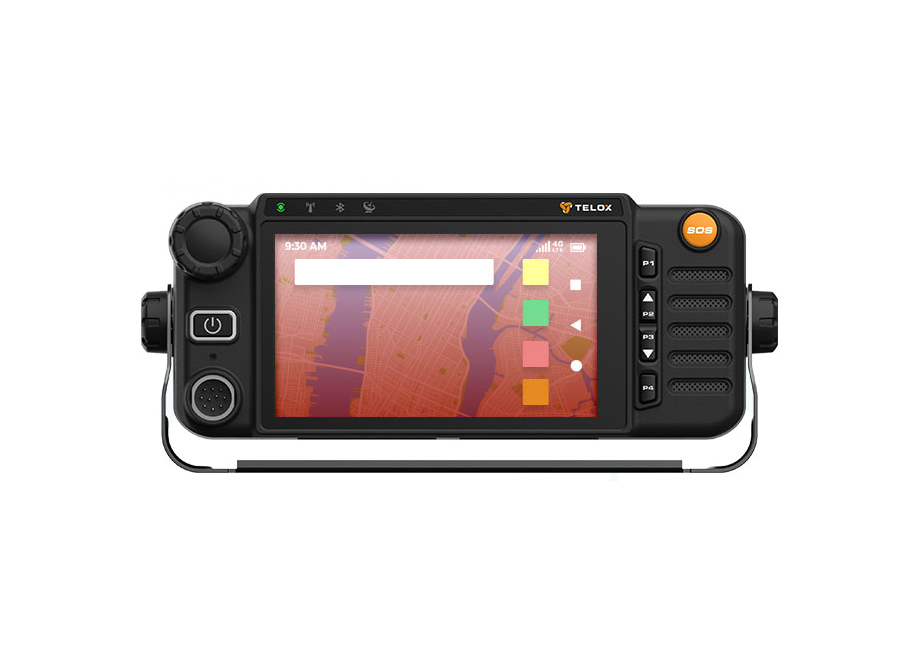

Telox M6

The 5” touch screen, 5w speaker and the Android 10 based M6 optimizes communication coverage and creates a better mission-critical experience. Multiple location services such as GPS, BDS, GLONASS, is highly versatile for transportation, logistics, school buses, indoor dispatching, and construction, etc.

M6 is highly versatile in some areas, such as transportation, school bus, logistics, fire truck and police car, etc., where users can quickly collaborate and share information across organizations.

Product number

Telox M6

Info build a list for quotation request
by collecting products in the basket.
To submit your request, click the basket logo and follow
further instruction.



Quantity:

Features

Intelligent LTE Vehicle Terminal

Physical Characteristics
Dimension 198.00*60.00*81.20mm(L*W*D)
Weight 442g
IP Grade IP54
Working Temperature -20 to +60°C
Power Supply DC 12-24V
Platform & Connectivity
OS Android Q
Processor 2.0GHz Quad-core 64 bit processor
RAM &ROM 2GB + 16GB
Cellular Network GSM: B2 / B3 / B5 / B8
WCDMA: B1 / B2 / B5 / B8
FDD-LTE: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B13 / B17 / B18 / B19 / B20 / B25 / B26 / B28a / B28b
TDD-LTE: B34 / B38 / B39 / B40 / B41 (Antenna needs to be connected)
WiFi Hotspot IEEE 802.11 a/b/g/n, 2.4G (Antenna needs to be connected)
Bluetooth V4.0+ BLE
Location GPS + AGPS , GLONASS (Antenna needs to be connected)
Display
Size & Type 5.0-inch HD Anti-Glare Screen
Touch Panel LCD Bonded 5 points Capacitive, spoort wet fingers, glove operation
Audio
Microphone 2 microphones with noise cancellation
Speaker 5 Watt Built-in Speaker
Interaction & Interface
Buttons & Channel Knob Power Button
PTT Button(P1)
Channel Switch & Volume+/- Knob
Programmable Buttons
SOS Button
Interface Micro-SIM card slot
10Pin aviation interface
Type-C USB 2.0
USB-A
3.5mm audio interface
3Pin power interface
DB9 interface
Antenna interfaces
