Codan 463 Terminated Folded Dipole Antenna

The Code 463 Terminated Folded Dipole Antenna is a 3-wire antenna designed for broadband operation in fixed stations and has a power rating of 125 W PEP.

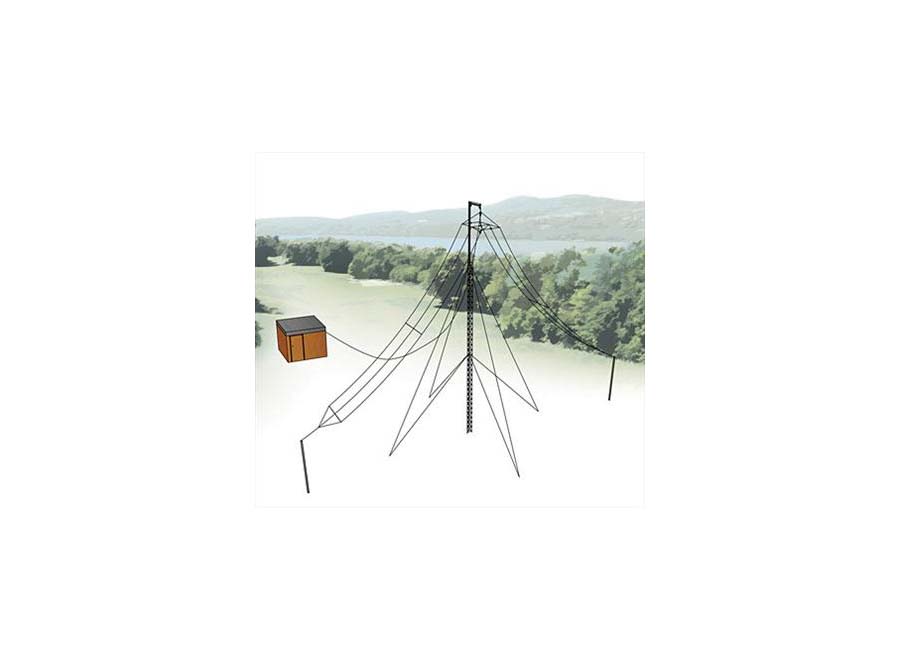

The Code 463 Antenna can be mounted horizontally between two support systems, or as an inverted “V” using a single central support mast.



Download datasheet



Product number

Codan 463 Terminated Folded Dipole Antenna

Info build a list for quotation request
by collecting products in the basket.
To submit your request, click the basket logo and follow
further instruction.



Quantity:

Features

Frequency: 2–30 MHz
Power rating: 125 W PEP
Nominal impedance: 50 Ω
VSWR: Generally less than 2:1
RF connector type: SO239
Length: 28 m (91.9 ft) insulator to insulator
Width: 1.3m(4.27 ft)
Minimum mast spacing: 30 m (98.5 ft)
Recommended mast height: 10–12 m (32.8–39.4 ft)
Wind rating: 200 km/h (125 ml/h)
Packed weight: 6.7 kg
Carton dimensions: 1435 mmx 165 mm x 165 mm
Mounting hardware: Halyard, pullies and mounting arm supplied

Durability
The Code 463 Antenna is made from lightweight, weatherproof materials designed to withstand extreme environmental conditions and wind speeds greater than 200 km/h.

Performance
The Code 463 Antenna performs optimally over a wide HF range, which means an antenna tuner is not needed.

Easy to install
The Code 463 Antenna is supplied completely assembled and ready for erection with an inverted “V” mounting arm and detailed erection instructions.

125 W PEP RF power rating
