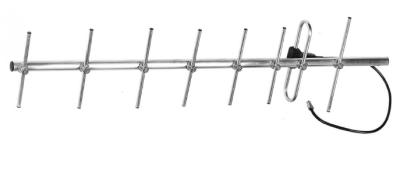

Amphenol Procom antennas S.8Y series

Directional antenna

Product number

Amphenol Procom antenna S.8Y series

Info build a list for quotation request
by collecting products in the basket.
To submit your request, click the basket logo and follow
further instruction.



Quantity:

Features

Directional antenna

  • The S.8Y series are of a rugged and reliable construction for long range communication networks at both UHF & VHF.
  • The one piece folded dipole incorporates a d.c. short to minimise static interference.
  • The balun assembly is completely encapsulated in epoxy resin, totally preventing moisture ingress, and has been tested to BS5490:IP67.
  • These antennas give a gain of 10 dBd with front to back ratio typically 18 dB.
  • They are supplied as standard with 3 metres of RG 213 cable terminated with an 'N' type socket, although cable and connector options are available upon request.
  • The S.8Y is approved to MPT1411: Part 2
Electrical Mechanical
  • Frequency range: 145 - 470 MHz
  • Input impedance: 50 Ω
  • Bandwidth: ± 4% of centre frequency
  • SWR: <1.5:1
  • Front to back ratio: 18 dB
  • Maximum input power: 150 W
  • Polarization: Vertical & horizontal
  • Forward gain: 10 dBd
  • 3 dB beamwidth:
    E Plane 43º
    H Plane 50º
  • Standard connection: 3 m (118.11 in.) Length of RG 213 c/w 'N' type socket
  • Elements:
    UHF 12.7 mm dia. x 1.6 mm (0.50 in. dia x 0.06 in.)
    wall aluminium alloy grade 6063T6
    VHF 19.0 mm dia. x 1.6 mm (0.75 in. dia x 0.06 in.)
    wall aluminium alloy grade 6063T6
  • Support boom: 31.7 mm dia. x 2.6 mm (1.25 in. dia x 0.10 in.)
    wall aluminium alloy grade 6082T6
  • Typical weight: UHF 3.0 kg (6.61 lb.), VHF 5.2 kg (11.46 lb.)
  • Typical height: UHF 1.6 m (62.99 in.), VHF 4.0 m (157.48 in.)
